Late Point Tagger¶

This stage supports the recognizing of late data and the tagging of late data points for generating data quality reports. The specific logic is as follows:

Use the timestamp field as the standard to filter late records. If the timestamp of a record is “later” than that of the latest record, the record will be recognized as late data.
The judging logic applies to records of the same point and same device.
For the first arriving record of a new point and new device, it will be recognized as “not late”. Its timestamp will be used to judge records arriving after it.
This stage supports streaming lineage.
This stage cannot guarantee idempotence of the calculation results due to failure retries caused by any reasons, such as cluster node exceptions.

Configuration¶

The configuration tabs for this stage are General, Basic, Input/Output, and CacheConfig.

General¶

Name	Required?	Description
Name	Yes	The name of the stage.
Description	No	The description of the stage.
Stage Library	Yes	The streaming calculator library to which the stage belongs.
Required Fields	No	The fields that the data records must contain. If the specified fields are not included, the record will be filtered out.
Preconditions	No	The conditions that must be satisfied by the data records. Records that do not meet the conditions will be filtered out.
On Record Error	Yes	The processing method for error data. Discard: Error data will be discarded and ignored Send to Error: Error messages will be reported Stop Pipeline: The pipeline will be stopped

Basic¶

Name	Required?	Description
Quality Filter	No	Filter the data according to the data quality. Only records that meet the quality conditions will be processed by this stage.

Input/Output¶

Name	Required?	Description
Input Point	Yes	Specify the input point of the records, using the format {modelId}::{pointId}. For the same configuration row, the modelId must be the same, and the input point and the output point must be different.
Output Point	Yes	Specify the output point of the records, using the format {modelId}::{pointId}. For the same configuration row, the modelId must be the same, and the input point and the output point must be different.

CacheConfig¶

Name

Required?

Description

Cache Type

Yes

Select the storage type for cache data. Options are Redis and Local storage.

Redis: The advantage is that the cached data will not be lost after the stream processing job is paused, restarted, or retried. The disadvantage is that the data processing speed is slow.
Local: The advantage is that the data processing speed is fast. The disadvantage is that the cached data will be lost after the stream processing job is paused, restarted, or retried.

Output Results¶

Records that are processed by this stage will be appended with the data quality tag (for generating data quality reports). Values of the data quality tags indicate whether the data records are arriving late.

Output Example¶

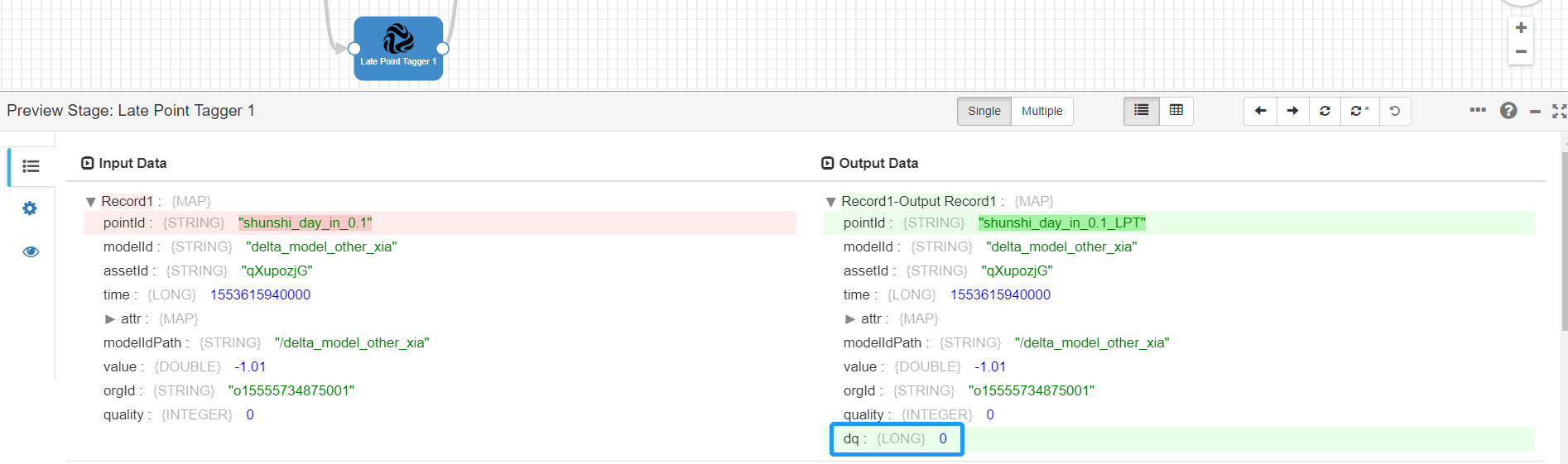

Normal point

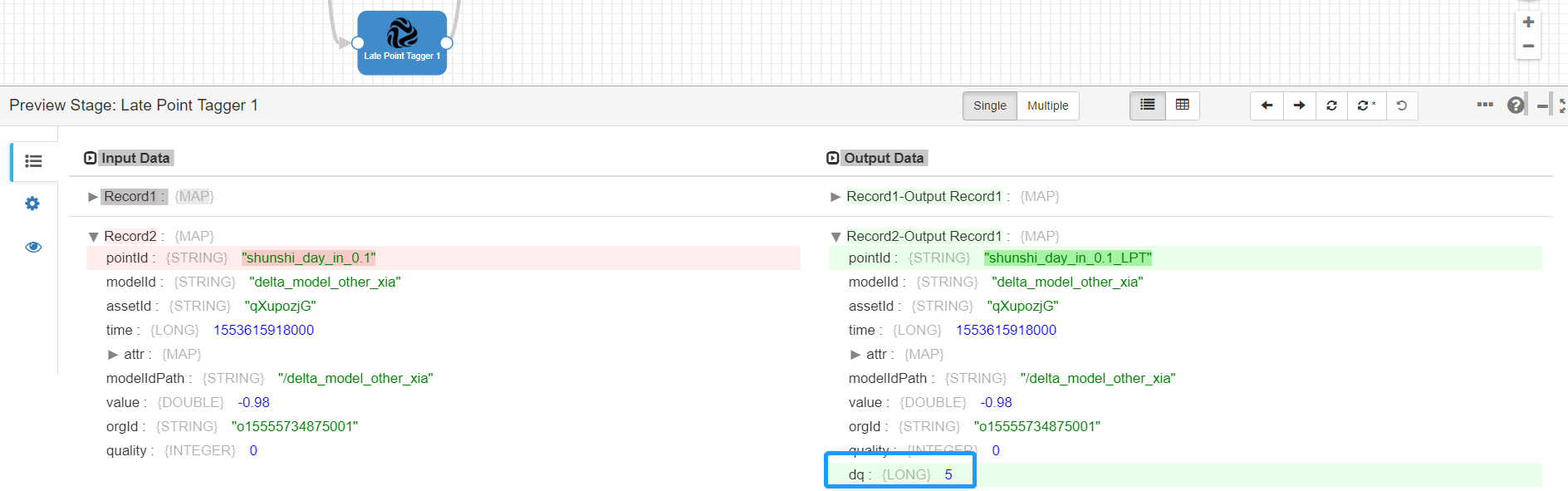

Late point
